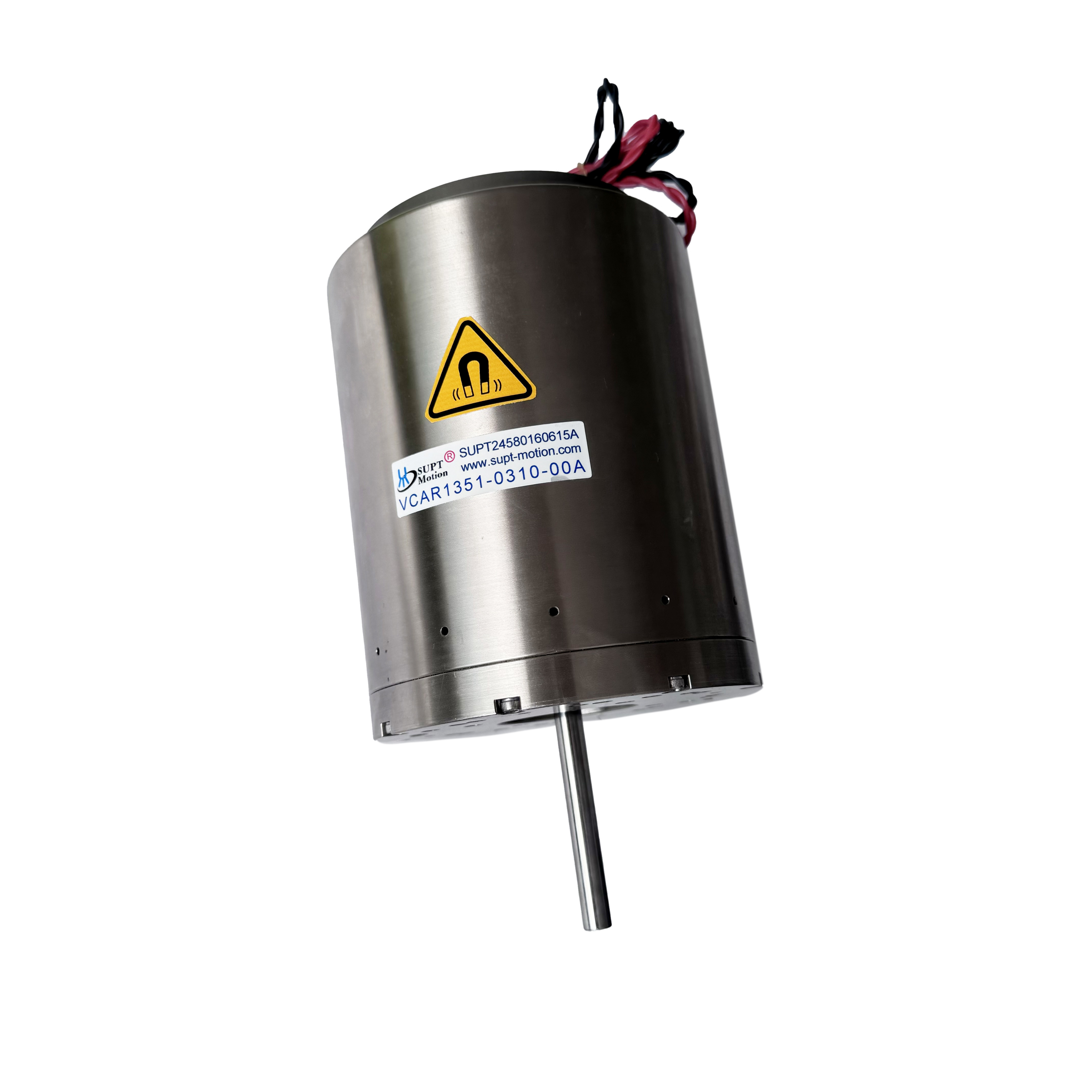

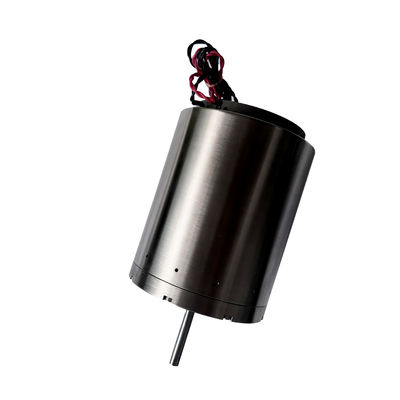

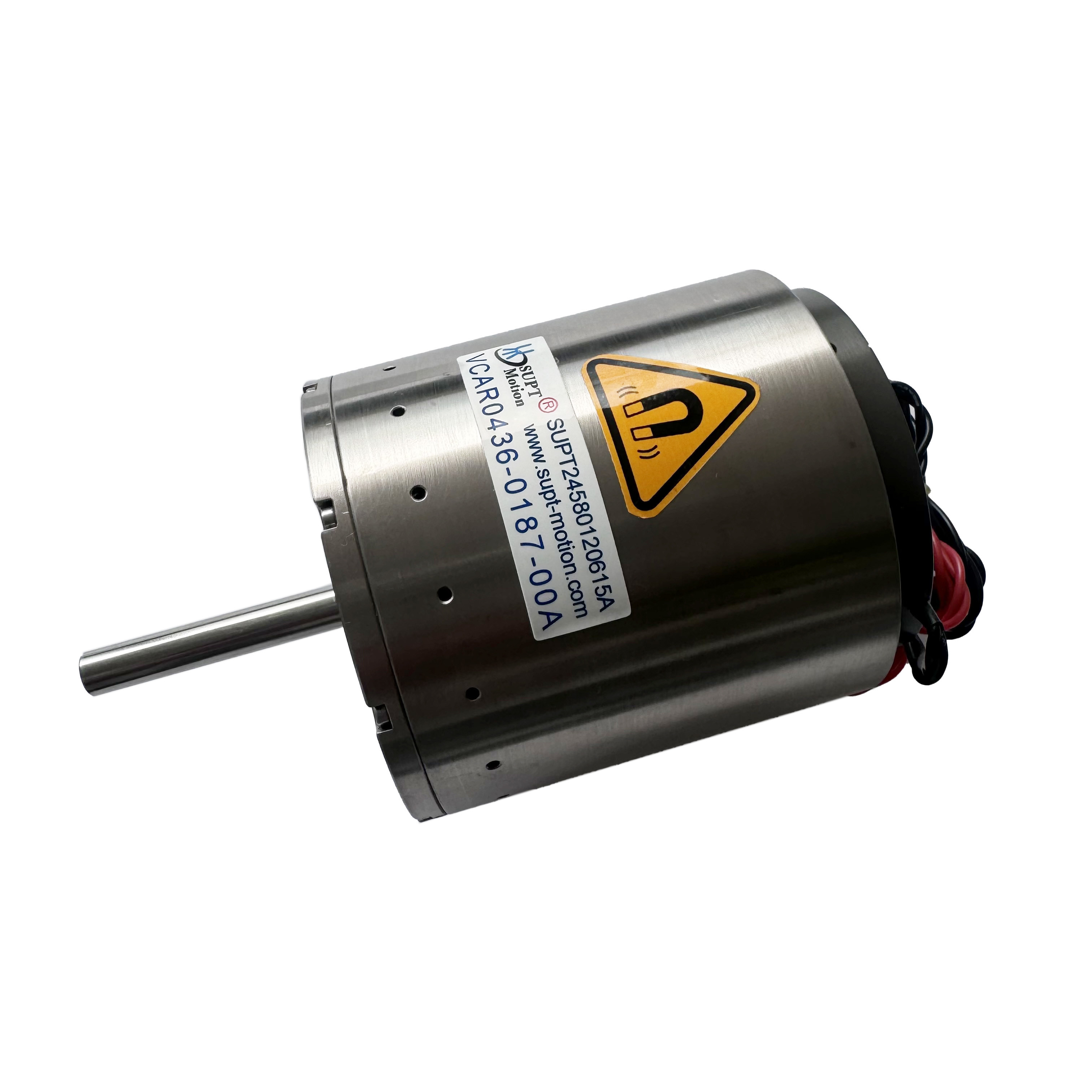

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
วอทส์แอพพ์:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| การรับประกัน | 3เดือน-1ปี | รุ่นสินค้า | VCAB0087-0563-00A |
|---|---|---|---|
| น้ำหนัก (กรัม) | 177 | แรงสูงสุด (N) | 87 |
| จังหวะรวม (มม.) | 56.3 | แรงดันไฟฟ้าสูงสุด (V) | 63.4 |
| แอปพลิเคชัน | ผลิตภัณฑ์อัตโนมัติ | ความเร็ว | สูง |
| ประเภทสินค้า | มอเตอร์วอยซ์คอยล์เชิงเส้น | การชดเชย | แปรง |
| แรงต่อเนื่อง(N) | 17.5น | ฟิลด์แอปพลิเคชัน | 3C Electronics, เซมิคอนดักเตอร์, ระบบอัตโนมัติ, ออพติกส์, อุปกรณ์ตรวจสอบ |
| เสียงรบกวน | เสียงรบกวนต่ำ |
รายละเอียดสินค้า
Product Description:
The VCAB0087-0563-00A shaft-type linear voice coil motor from SUPT adopts a moving-coilactuation mechanism combined with a precision-guided shaft and linear bearings, offering excellentstability within a compact structure. lts high-flux permanent magnet assembly creates a strongmagnetic field, enabling the lightweight moving coil to produce highly responsive and linear forceoutput with minimal inertia. This design allows the actuator to maintain outstanding dynamicbehavior during rapid acceleration, deceleration, and frequent reciprocating motion.
The Linear Voice Coil Motor, with its frictionless drive, high-frequency response, nanometer-level displacement resolution, and highly linear motion output, has become an essential actuator in modern medical scanning equipment. It is widely used in blood analyzers, CT auxiliary positioning units, confocal scanners, endoscope autofocus modules, and ultrasound probe scanning mechanisms, enabling fast, silent, contact-free, and highly repeatable micro-positioning performance.
Features:
- Frictionless Direct-Drive Architecture
- Ultra-Precise Micro-Positioning (Nanometer Resolution)
- Ultra-Low Noise Motion
- Millisecond-Level Fast Response
- Supports Closed-Loop Position / Force Control
Technical Specifications :
Stroke:56.3mm
Continuous Force:147.6N
Peak Force:87N
Force Constant:8N/A
Resistance:35.2Ω
Mass:good
Dimensions:200*400*400cm
Working Current:1.8A
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Confocal Optical / Laser Scanners
- Endoscope Autofocus Units
- Hematology Cell Scanners
- Ultrasound Probe Scanning Mechanisms
- Medical Lab Micro-Positioning Stages
- CT / X-Ray Positioning Units
